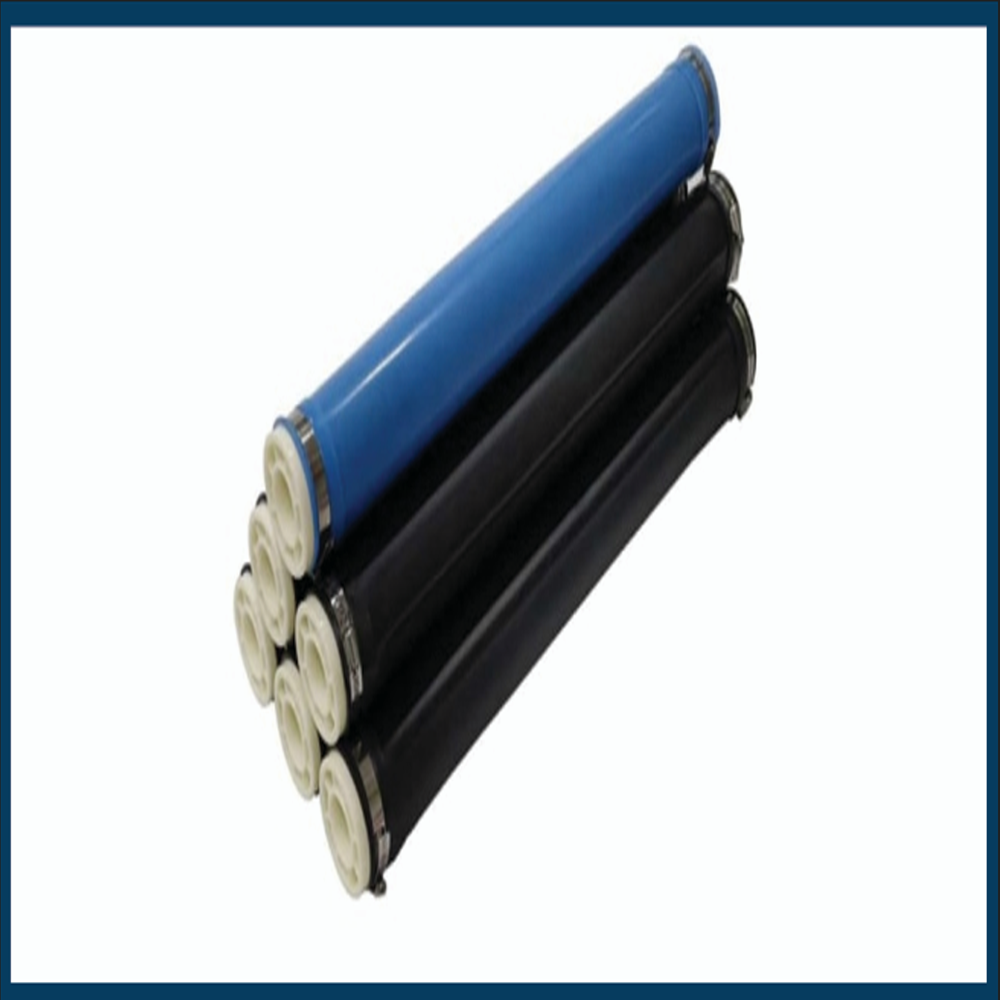

AIR TUBE DIFFUSER

Price 1100.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

AIR TUBE DIFFUSER Specification

Weight
Approx. 0.65 kg

Pressure Range
0.02 - 0.05 MPa (recommended working pressure)

Capacity
Air flow rate: 2 - 8 m/hr per tube

Filter Medium Material
Microporous EPDM rubber membrane

Install Type
Submersible, horizontal or vertical mounting

Application
Sewage treatment plants, aquaculture, fish farming tanks, ETP/STP aeration

Filter Type
Aeration diffuser (not a particulate filter)

Voltage
Not applicable (operates with external air supply/air blower)

Shape
Tubular/Cylindrical

Features
Fine bubble aeration, high oxygen transfer efficiency, anti-clogging, easy installation, low maintenance

Product Type
Air Tube Diffuser

Function
Even distribution of air for water aeration

Use
Wastewater treatment, aquaculture, fish ponds, sewage plants

Material
EPDM (Ethylene Propylene Diene Monomer) Rubber with ABS connectors

Size
Length: 500 mm, Diameter: 63 mm (standard sizes available)

Bubble Diameter
<2 mm (fine bubble)

Connector Size
Standard 3/4 BSP or as specified

Membrane Slot Size
1 mm slit for fine bubble formation

Maximum Differential Pressure
0.6 bar

Service Life
5 to 8 years (typical)

Operating Temperature Range
5C to 60C

Open Area Ratio
28% - 35%

Color
Black with blue/white end caps

Resistance to Chemicals
Excellent resistance to acids, alkalis, and wastewater contaminants

Air Inlet Type
Side/End entry, male thread

Cleaning Maintenance
Periodic backflushing and chemical cleaning recommended

AIR TUBE DIFFUSER Trade Information

Minimum Order Quantity
1 Piece

FOB Port
PUNE

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Main Domestic Market
Maharashtra

About AIR TUBE DIFFUSER

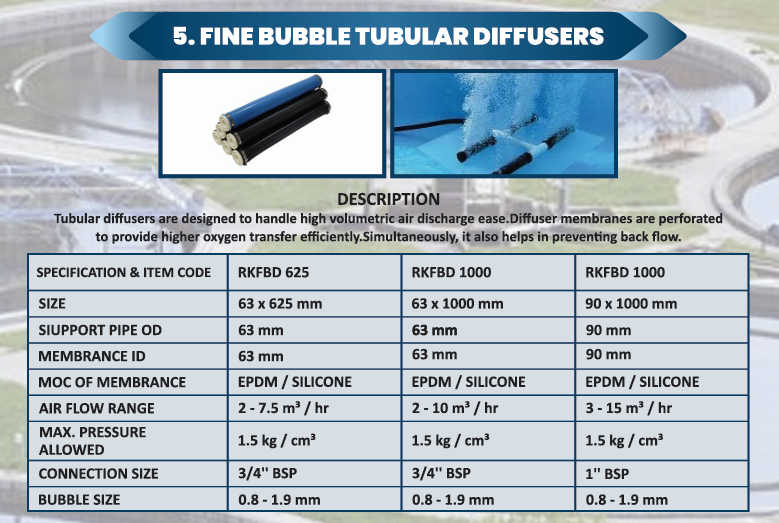

Tubular diffusers are designed to handle high volumetric air discharge ease.

Diffuser membranes are perforated to provide higher oxygen transfer efficiently.

Simultaneously, it also helps in preventing back flow.

SPECIFICATION & ITEM CODE	RKFBD 625	RKFBD 1000	RKFBD 1000
SIZE	63 x 625 mm	63 x 1000 mm	90 x 1000 mm
SIUPPORT PIPE OD	63 mm	63 mm	90 mm
MEMBRANCE ID	63 mm	63 mm	90 mm
MOC OF MEMBRANCE	EPDM / SILICONE	EPDM / SILICONE	EPDM / SILICONE
AIR FLOW RANGE	2 - 7.5 m / hr	2 - 10 m / hr	3 - 15 m / hr
MAX. PRESSURE ALLOWED	1.5 kg / cm	1.5 kg / cm	1.5 kg / cm
CONNECTION SIZE	3/4'' BSP	3/4'' BSP	1'' BSP
BUBBLE SIZE	0.8 - 1.9 mm	0.8 - 1.9 mm	0.8 - 1.9 mm

Efficient Fine Bubble Aeration

With a 1 mm slit membrane and optimized open area ratio (28%-35%), this diffuser ensures uniform distribution of fine bubbles (<2 mm diameter), greatly enhancing oxygen transfer rates in water. This fine bubble formation is ideal for biological treatment processes in wastewater and enhances the health of aquatic environments.

Reliable Performance and Longevity

Constructed from durable EPDM rubber and ABS, the diffuser resists acids, alkalis, and wastewater contaminants. The specified service life ranges from 5 to 8 years under recommended operating conditions and cleaning protocols, making it a stable and low-maintenance choice for aeration systems.

Easy Installation and Maintenance

Designed for versatility, the diffuser supports both side and end air inlet options. Installation is straightforward-mount submerged, either horizontally or vertically, and connect via the standard 3/4" BSP male thread. Periodic backflushing and chemical cleaning maintain optimal performance and prolong operational life.

FAQ's of AIR TUBE DIFFUSER:

Q: How does the Air Tube Diffuser achieve fine bubble aeration?

A: The diffuser membrane features 1 mm slits that generate fine bubbles measuring less than 2 mm in diameter. This fine bubble formation maximizes surface area for oxygen transfer, improving aeration efficiency in water treatment and aquaculture systems.

Q: What maintenance steps are required to ensure optimal performance?

A: Regular maintenance involves periodic backflushing to clear any accumulated debris and occasional chemical cleaning to prevent fouling and maintain the anti-clogging properties of the EPDM membrane. Following these simple procedures helps sustain high performance and prolongs the unit's service life.

Q: When should I consider replacing the diffuser tube?

A: Under normal operating conditions and with proper maintenance, the diffuser typically lasts between 5 to 8 years. Replacement is recommended if you observe reduced bubble output, persistent clogging despite cleaning, or physical damage to the membrane.

Q: Where can this diffuser be installed, and in what configurations?

A: The air tube diffuser is suitable for use in sewage treatment plants, fish farming tanks, aquaculture setups, and effluent treatment plants. It is designed for submersible installation and supports both horizontal and vertical orientation for flexibility in various systems.

Q: What are the main benefits of using this aeration diffuser in water treatment applications?

A: Key benefits include high oxygen transfer efficiency, anti-clogging membrane, low energy consumption, and stable operation under challenging chemical environments. These attributes make it ideal for improving water quality and supporting biological treatment processes.

Q: How is the air supplied to the diffuser, and what is the recommended operating pressure?

A: Air is delivered via an external supply (such as an air blower) through the standard 3/4" BSP male thread connector. For optimal performance, the recommended working pressure is in the range of 0.02-0.05 MPa, with a maximum differential pressure of 0.6 bar.
